Support for various trial test

Trial test, comissional test and joint reserch are provided based on supercritical water, hydrothermal synthesis and supercritical CO2 etc..
We offer the knowledge and know-how accumulated based on high temperature / high pressure technology over 10 years.
Please feel free to contact us!

1. Flow type trial test for supercritical hydrothermal synthesis, hydrothermal synthesis, and solvothermal synthesis.
2. Trial test using supercritical CO2.
3. Drysnow cleaning test

1. Flow type trial test for supercritical hydrothermal synthesis, hydrothermal synthesis, and solvothermal synthesis.（Technical data・Product information）

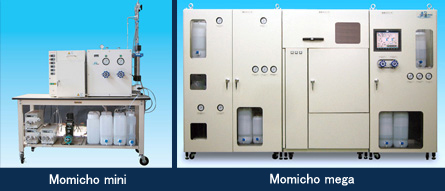

Test condition for flow type trial test	Type of test Flow type nano particle synthesis, surface modification and material processing by using Momicho series. Device Momicho mini、Momicho mega（selected based on amount to be processed） Option High pressure slurry pump Washing and separation of the collected product ＊Reaction kit (Purchase of reaction kit is recommended in order to avoid contamination) Items to be prepared by customer Vessel to collect the product sample (about 1 L size) Vessel for waste fluid (10L or 20L polyethylene tank) Reagent or raw material to be processed ＊If requested, all material can be prepared by ITEC Operation of the system will be carried out by ITEC operator. Minimum will be from one day.
Test examples have been carried out	Nano particle, nano particle synthesis Zinc oxide (ZnO), Titanium oxide (TIO2), zirconium dioxide (ZrO2), barium titanate (TiBaO3), indium tin oxide (ITO), metallic nickel, silver (Ag), copper (Cu), ferrite system（M-Fe2O3), phosphor particles（Y2O3：Eu) Surface modification particles Inorganic filler, (alumina (Al2O3, boron nitride, aluminum nitride (AlN), zinc oxide (ZnO), silica SiO2, carbon‐based material (C)) and organic modifications on above mentioned particles or other particles Others Material, using supercritical water or subcritical water. Slurry processing (decomposition, dissolution and reaction)
The example of a test particle (Synthesized by ITEC)	Zinc oxide nano particle Titania nano particle Organically modified zirconia nano particle Organically modified seria nano particle



2. Trial test using supercritical CO2（Product information）

Supercritical CO2 test is provided for extraction, drying, concentration, dispersion, composition and surface modification.

Condition of trial CO2 test

Type of test Flow type test for CO2 processing, such as drying, concentration and extraction, for the samples. Device Supercritical CO2 reaction lab testing machine Items to be prepared by customer Vessel to collect the product sample (about 1 L size) ＊If requested, all material can be prepared by ITEC Test examples have been carried out Dispersion of carbon material, concentration of nano particle dispersion fluid and CO2 dissolution extraction.

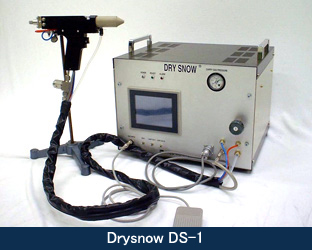

3. Drysnow cleaning test(technical data・product information)

Try to see what it is like. Try to clean the samples.
Rental available.

Test condition for drysnow trial cleaning	Test condition Surface treatment or trial cleaning by Drysnow. Test device Drysnow Items to be prepared by customer Test samples Test samples have been carried out Cleaning of print circuit board
