Drysnow

What is Drysnow?

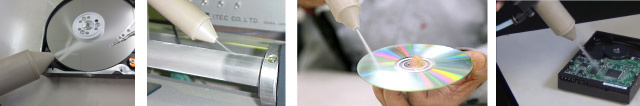

▸Drysnow is the cleaner that blasts the fine dry ice powder produced from a liquid CO₂ cylinder.
▸Drying and waste treatment is not necessary due to sublimation of the dry ice powder.
▸Suitable for cleaning precision parts. It can also be installed into production line.

Features

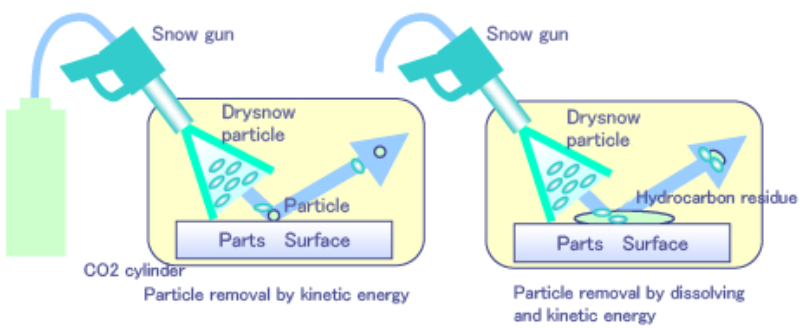

▸Particulates and oil can be removed by blasting fine dry ice powder without damage. ▸The fine dry ice powder is produced by liquid CO₂ cylinder. ▸Water and drying process is unnecessary. ▸CO₂ is not hazardous material and thus the cleaning is environmental friendly process. ▸Snow powder sublimes rapidly and does not cause a secondary dirt. ▸Handy type and in-line type are available.

Features

▸Particulates and oil can be removed by blasting fine dry ice powder without damage.
▸The fine dry ice powder is produced by liquid CO₂ cylinder.
▸Water and drying process is unnecessary.
▸CO₂ is not hazardous material and thus the cleaning is environmental friendly process.
▸Snow powder sublimes rapidly and does not cause a secondary dirt.
▸Handy type and in-line type are available.

Advantage of drysnow
Liquid CO₂ is supplied from a CO₂ cylinder. ▸The carry gas is heated to prevent the clogging of snow and the condensation on a target. ▸Flowrate of jet is adjustable. Very small flow rate is available without blocking. ▸ON/OFF switching is instantaneous.

▐ Movies

▐ Examples

Adhesive on carbide parts		Residue on a solar cell film
Before	After	Before	After


Fingerprint on a glass plate		Dirt on a CMOS image sensor
Before	After	Before	After


Oil and metal powder on a motor		Solder on auto parts (<0.24 mm)
Before	After	Before	After


Glass particle on an OEL display device		Dirt on a LCD terminal
Before	After	Before	After

▐ Products

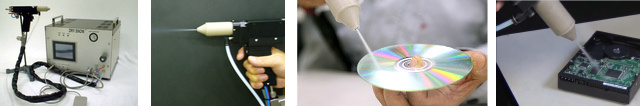

DS-1(handy type)

▸DS-1 is the handy type that requires only a CO₂ cylinder, compressed air, and electricity.
▸The compressed air is not necessary for the type DSS-1.

DS-2(in-line type)


The controller and two guns	An example of in-line use

▐ Specifications

	DS-1	DS-2
Size/weight	▸Controller: W425 x D412 x H360 mm 25kg ▸Drysnowgun: W45 x H150 x L270 mm 2.5kg	▸Controller: W425 x D412 x H360 mm 25kg ▸Drysnowgun: W57 x H70 x L270 mm 2.4kg (Two drysnowguns are available for single controller)
Utilities	▸Liquid CO₂: 5-6 MPa (room temp.), siphon type cylinder ▸Electricity: AC100V 15A 50/60Hz (can be changed) ▸Compressed air: 0.5-0.7 MPa
Consumption	▸Power: 800 W ▸Liquid CO₂: ~100-300 g/min/drysnowgun (also available for 30-150 g/min) ▸Carry gas: 150Nl/min (compressed dry air / N₂)
Contents	▸Control panel (with 3000mm connection cable) x1 ▸Drysnowgun (with 0.5mm filter x1, connection tube, 1800mm cable) x1 ▸Connection tube (3000mm) for a CO₂ cylinder (with 0.5mm filter x1 and fittings) x1 ▸Foot switch x1 ▸Connection tube for an air compressor (φ6, 3000mm) x1 ▸Manual x1	▸Control panel (with 3000mm connection cable) x1 ▸Drysnowgun (with 0.5mm filter x1, connection tube, 1800mm cable) x2 ▸CO₂ cooling unit W250 x D200 x H160, 5.3kg x 1 /gun ▸Connection tube (3000mm) for a CO₂ cylinder (with 0.5mm filter x1 and fittings) x1 ▸Connection tube for an air compressor (φ6, 3000mm) x1 ▸Manual x1
Options	▸Drysnowgun with vernier handle W57 x H70 x L290 ▸Drysnowgun with wide nozzle ▸Drysnowgun with high flux nozzle ▸Fine filter (0.1μm) x1 /gun
