Supercritical CO2
Supercritical CO2 extraction lab machine
Supercritical CO2 is used as a solvent and extract the functional substance from products of nature (plant etc.). The best extraction condition is researched with this system. Removal of a harmful contaminant and verification of refining separation is possible.
Standard specification of supercritical CO2 extraction lab system
| Dimensions | 1500mml × 800mmW × 1900mmH | |||
|---|---|---|---|---|
| Pump | CO2 pump | 100ml/min,50MPa | ||
| Entrainer pump | 40ml/min，34MPa | |||
| Power supply | AC200V 3phase 60A | |||
| Pressurized vessel | Pressure (MPa) | Temperature（℃） | Internal volume（ml） | |
| Extraction vessel | 50 | 100 | 1000 | |
| Separator 1 | 20 | 100 | 500 | |
|
Separator 2 |
10 | 100 | 100 | |
 Supercritical CO2 extraction lab system |

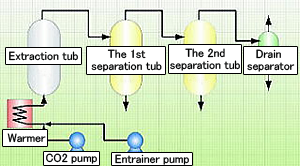

 Supercritical CO2 extraction lab system flow |
.
